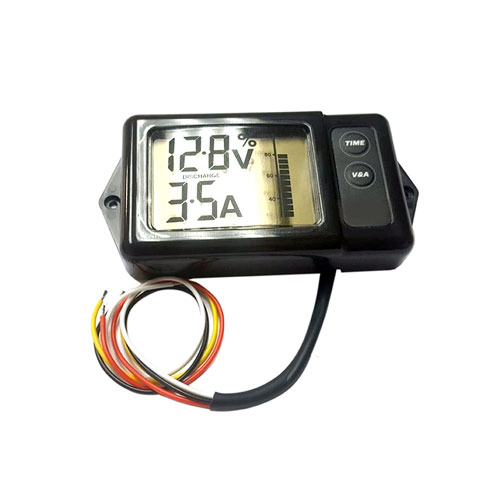

Volt & Amp Monitor CS 12V

Code: 9109140172

N$1,835.00

Status: In Stock

Read Review(s) | Log in to Review

Features

Features

  • Cables supplied
  • 100A shunt link to M8 Ring terminal
  • 5m from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery
  • Easy to use – One screen displays the voltage, current (charge or discharge) and a bar graph showing the remaining capacity
  • A flashing alarm is also included to warn if the capacity is getting too low
  • A second screen shows the remaining time available at the current charge/discharge rate together with the remaining capacity in both analog and digital format.

Specifications

Specifications

  Supply Voltage:

  8-16DC

  Supply Current:

  1.5 milliamps

  Battery Capacity:

  5-600A Hour

  Load Current:

  100A Max

  Charging Current:

  100A Max

  Shunt Standard:

  50 millivolt @ 100A

  Dimensions (mm):

  125x62x23
