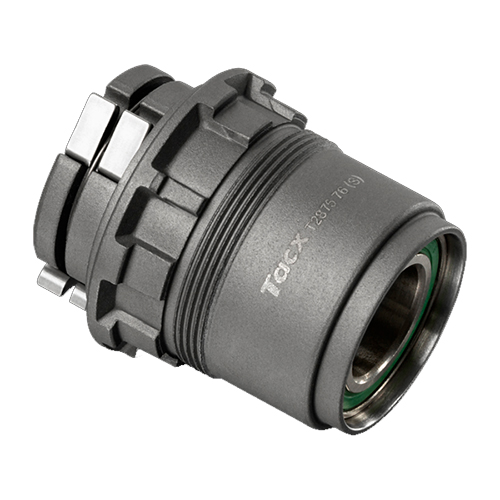

Tacx SRAM XD-R Body (Type 2)

Code: 9110101201

N$2,490.00

Status: Out of Stock Online

Read Review(s) | Log in to Review

Features

Features

The standard body of a Tacx direct drive trainer is not compatible with all cassettes. Use this body to suit your SRAM XD-R cassette. It’s easy to place, and all you’ll need is a 5 mm hex key.

The SRAM XD-R body is suitable for 11- and 12-speed SRAM XD-R cassettes. This version is used for trainers with Type 2 axles.



Compatible Devices:

  • Tacx® FLUX 2 Smart Trainer
  • Tacx® FLUX S Smart Trainer
  • Tacx® NEO 2T Smart Trainer

Specifications

Specifications

Which Type of Axle Do I Have on My Tacx Trainer?

Tacx direct-drive trainers will come in two different axle types described below.

NOTE: Most newly purchased Tacx direct drive trainers will be a Type 2 trainer.The exception would be a trainer that has sat on a shelf for an extended period of time.



Type 1 Axle

6 mm or 9 mm internal diameter axle hole suitable for a quick-release skewer.  Adapters allow for a thru-axle bike to be installed onto the trainer using a quick-release skewer.

Type 2 Axle

 12 mm internal diameter axle hole suitable for using a bike's thru-axle. Adapters allow the use of a quick-release skewer as well.

How Do I Determine Which Type of Axle My Trainer Has?

Type 1 trainers:

  • NEO Smart
  • NEO 2 Smart
  • FLUX Smart
  • FLUX S Smart*
  • FLUX 2 Smart*

Type 2 trainers:

  • NEO 2T
  • NEO 2, Type 2
  • FLUX S Smart*
  • FLUX 2 Smart*

*NEO 2, FLUX S and FLUX 2 trainers have been manufactured using both Type 1 and Type 2 axles.  You can choose one of the following identification methods to determine which axle type your trainer has:

NOTE: If a Cassette is currently installed onto the Cassette Body of your trainer, you will need to remove it using a cassette lock ring tool and chain whip in order to read the part number



Identify the part number on the cassette body installed on the trainer out of the box:

  • Shimano Freehub bodies: Type 1, T2805.01 (S) compared to Type 2, T2875-01
  • Observe the perimeter surface of the axle endcaps on the trainer, looking for any white letters / numbers identifying the appropriate side for installation and axle diameter x length:
    • Type 1: All black endcap, Quick-release compared to thru-axle: no letters or numbers printed on either cap
    • Type 2: Quick release caps will be labelled: "QR DS", "QR x 130 NDS" or "QR x 135 NDS". Thru-axle endcaps will be labelled: "12 DS", "12 x 142 NDS" or "12 x 148 NDS".
  • Measure the inside diameter of the trainer axle with the cassette body removed using a caliper tool (pictured below)
    • Type 1: 6mm or 9mm
    • Type 2: 12mm





Which Cassette Body Do I Need for My Trainer?

Direct-drive trainers come with a SHIMANO/SRAM cassette body out of the box.  If you need a replacement or different cassette body, below are part numbers available for purchase:

Description Service Part Number
SHIMANO/SRAM Cassette Body (Type 1) S0012
SHIMANO/SRAM Cassette Body (Type 2) S0050
Tacx Campagnolo Cassette Body (Type 1) T2805.51
Tacx Campagnolo Cassette Body (Type 2) T2875.51
Tacx SRAM XD-R Cassette Body (Type 1) T2805.81
Tacx SRAM XD-R Cassette Body (Type 2) T2875.76
Tacx MICRO SPLINE Shimano 12spd Body (Type 2)  010-13042-07
