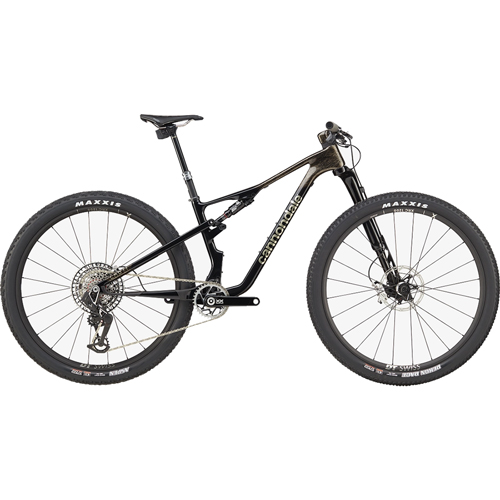

Cannondale LAB71 Scalpel

Cannondale LAB71 Scalpel – Redefining Cross-Country Speed

Hold on Tight

Experience the thrill of ultimate speed and control with the LAB71 Scalpel, Cannondale’s pinnacle of XC racing engineering. Combining groundbreaking technology, ultralight materials, and precision-tuned components, the Scalpel is the epitome of cross-country performance.

The Cannondale LAB71 Scalpel is more than a bike; it’s a statement of performance, technology, and elegance. From its featherlight carbon construction to its race-winning suspension and geometry, it’s engineered for riders who demand the absolute best.

Suitable for Competitive Racers and Trail Enthusiasts.

Key Highlights

Frame & Suspension

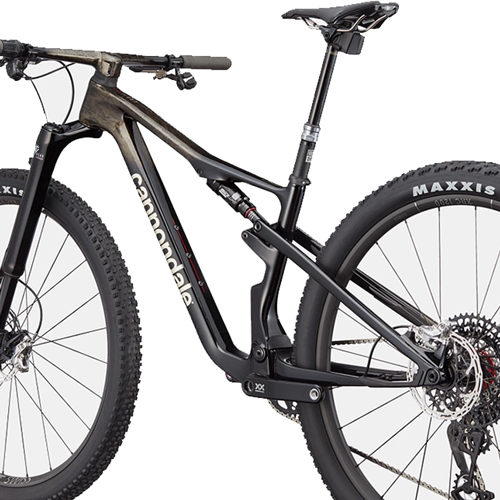

• Ultralight Series 0 Carbon Frame: Cannondale’s most advanced frame with FlexPivot technology for efficient power transfer and superior ride quality.
• Proportional Response-Tuned Geometry: Tailored to provide optimal handling and performance across all sizes.
• 120mm Travel: Front and rear suspension for ultimate capability on rough terrain.

Fork & Shock

• Lefty Ocho Carbon Fork: World’s smoothest and most precise-handling XC fork with 120mm travel and TwistLoc Ultimate remote lockout.
• RockShox SIDLuxe Ultimate Rear Shock: Remote lockout capability for on-the-fly adjustments and efficiency.

Drivetrain & Brakes

• SRAM XX SL AXS Transmission: Wireless electronic 12-speed shifting for flawless gear changes.
• Level Ultimate Stealth Brakes: Lightweight, powerful, and reliable stopping performance.

Wheelset & Cockpit

• DT Swiss XRC 1200 Spline Carbon Wheelset: Featherlight and fast for maximum acceleration and control.
• SystemBar XC-One: One-piece carbon handlebar and stem for precision handling and streamlined aesthetics.

Frameset

Frame: Scalpel LAB71, Series 0 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native

Fork: Lefty Ocho 120 Carbon, 120mm, Chamber Damper, OppO Spring System, tapered steerer, 50mm offset, TwistLoc Ultimate remote dual lockout

Headset: Acros ICR

Rear Shock: RockShox SIDLuxe Ultimate, 2-Pos mode adjust, adjustable rebound, 190x45, TwistLoc Ultimate remote dual lockout

Drivetrain

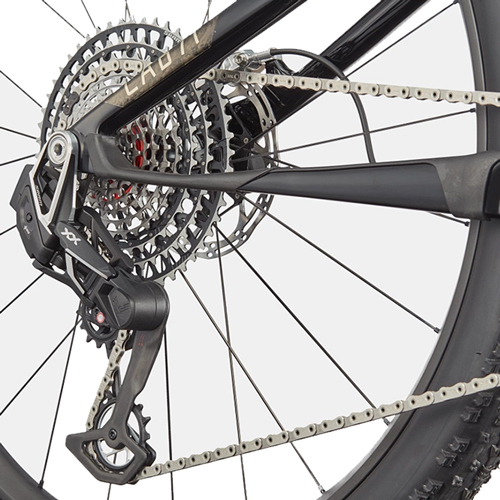

Rear Derailleur: SRAM XX SL Eagle AXS, T-Type

Shifters: SRAM AXS T-Type Ultimate Pod Controller

Chain: SRAM XX SL, T-Type, 12-speed

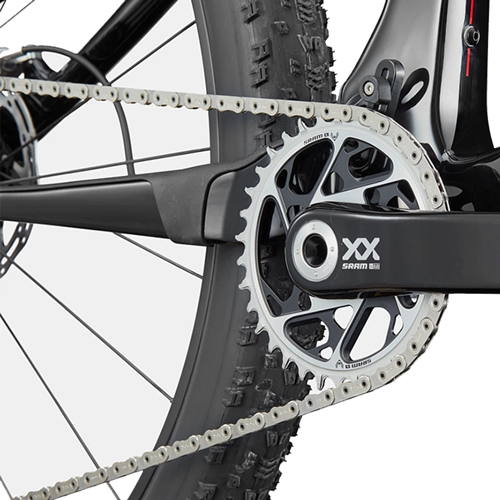

Crank: SRAM XX SL T-Type, 34T

Rear Cogs: SRAM XX SL Eagle, 10-52, T-Type, 12-speed

Bottom Bracket: SRAM DUB BSA 73mm MTB, Ceramic

Brakes

Brakes: SRAM Level Ultimate Stealth, 4-piston hydraulic disc, SRAM CLX rotors, 180mm 6-bolt (F) /160mm centerlock (R)

Brake Levers: SRAM Level Ultimate Stealth

Wheels

Rims: DT Swiss XRC 1200 SPLINE, carbon, 30mm inner width, hookless, TSS tubeless ready

Spokes: DT Swiss Aerolite straight pull (F) / Aerolite & Competition straight pull (R)

Tire Size: 2.4

Wheel Size: 29

Hubs: DT Swiss Lefty, 6-bolt (F) / DT Swiss 180 Ratchet EXP 36, centerlock, XD driver (R)

Tires: (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

Components

Handlebar: SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp

Stem: SystemBar XC-One Flat, carbon integrated bar/stem

Grips: RockShox Smooth Silicone

Saddle: Prologo Dimension NDR, Tirox rails

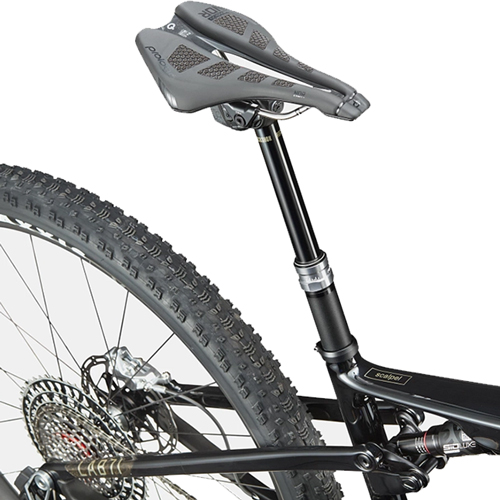

Seatpost: RockShox Reverb AXS, 31.6, 125mm (S), 150mm (M-XL)

Connectivity

Wheel Sensor: Cannondale Wheel Sensor
