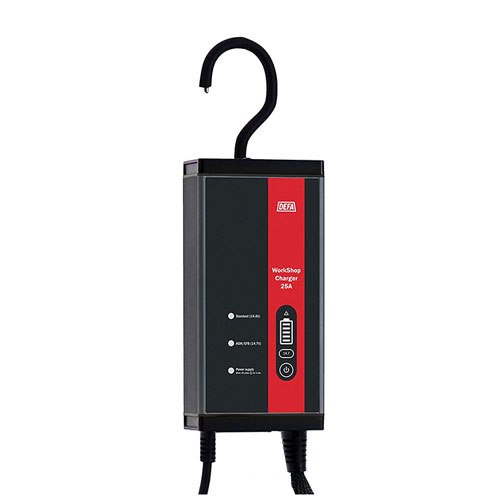

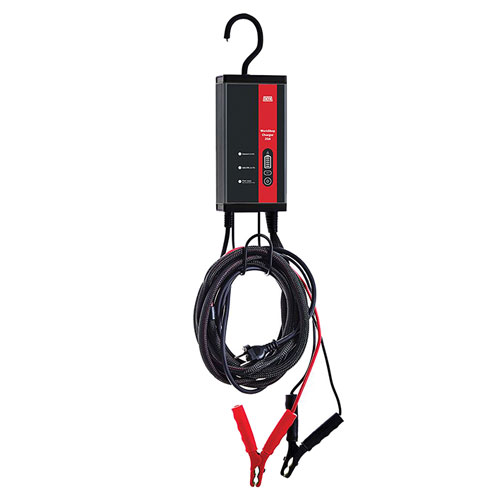

Defa 25A Workshop Charger 12V

Code: 9109140160

N$10,039.00

Status: In Stock

DEFA WorkShopCharger 25A is based on modern switch-mode
technology and galvanized divisions. This charger represent the
latest technology within battery charging and will give the batteries
optimum life.

Features

Features

Use

Well suited for battery sizes up to approximately 500Ah. It can maintenance charge batteries indefinitely and handle parallel consumption up to 30A while charging. The charging voltage is temperature compensated with an external sensor.



14,7 V

Some batteries require a higher charging voltage than others (this is described son the battery). Press the 14.7V button, and the initial charging voltage will be 0.3V above than the standard level.



Power supply mode

When you need continuous current and stable voltage during ECU programming or battery replacement, you can use our workshop chargers as a power supply. Activate Powersupply-mode by holding the “ON” button until the display begins to light up in sequence.

Specifications

Specifications

Technical specifications
Input voltage [VAC] 230
Operating temperature [ºC] -20/+50
Charging voltage* S1 [VDC] 14,4/14,7
Maintenance charging S2 [VDC] 13,6
Charging current [A] 25
Battery size, max [Ah] 500
IP rating [IP] 20
H/W/D [mm] 202x98x53
Weight [kg] 2,2
Certifications  EN60335-1, EN60335-2-29,
EN55014-1, EN55014-2,
EN61003-3/2
